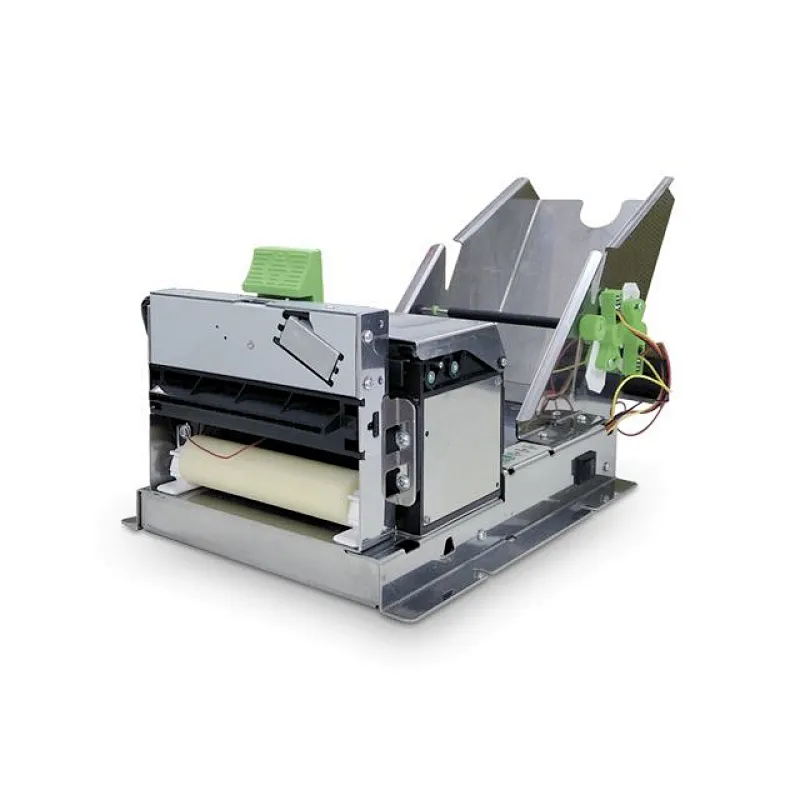

4 inch Thermal Kiosk Printer

Printing method

direct line thermal

Printing paper width

103±0.25mm

Resolution

8 dots/mm,800 dots/line

Printing speed

150mm/s(thermal paper max)

MCBF

1)Printing head life: 50km

Operating conditions:

* Print font 12×24 ASCII,50 lines per,Intermittent repeat print

  * use specified Thermal paper

(2)Auto cutter life:300,000 cuts.

Effective printing width

100mm

Print Font

Codepage,: ANK: 9 x17 / 12 x24; Chinese: 24 x 24

Barcode

UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODABAR, CODE93,CODE128,PDF417,QR Code,DATA Matrix

Interface

RS323+USB

Power supply

DC24V±10%,2A,VH3.96-4P power socket

Thermal paper roll

Width: 103±0.25mm

Thickness: 0.06mm~0.15mm

Operating Temp/Humidity

0~50℃/10~80%

Storage Temp/Humidity

-25~70℃/10~90%
