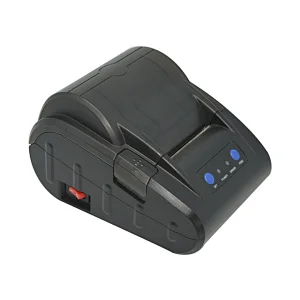

58mm Thermal POS Printer

Print

Printing Method

Thermal Line

Printing Speed

50mm/s

Resolution

8 dots/mm, 384 dots/line

Effective Printing Width

48mm

Character

Character Set

ASCII, GB18030(Chinese),BIG5

Print Font

Codepage, ANK: 9 x17 / 12 x24

Character per Line

32

Paper Spec

Paper Type

Thermal paper

Paper Width

57.5± 0.5mm

Paper Roll Diameter

Max:  60mm

Roll Core Inner Diameter

13mm(min.)

Paper Thickness

0.06~0.08mm

Ribbon Cassette

N/A

Paper Supply Method

Drop-in easy paper loading

MCBF(MCBF)

Mean Cycles Between Failure

5 million lines

TPH

100km

Barcode

UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODEBAR,CODE93,CODE128

Emulation

ESC/POS

Drive

Win dows98/2000/NT/XP/Vista/Win7/Linux

Sensor

Paper End Sensor

Drawer Port

N/A

Interface

RS-232/ USB/Bluetooth

Power Supply(Adapter)

AC100 ~240V ± 10%(include) DC 7.5V, 2A

Auto Cutter

Type

N/A

Life

N/A

Cutting Method

N/A

Physical

Net Weight

500g

Gross Weight

1.0kg

Printer Dimension(W*L*H)

150x122x93mm

Color

Black

Environment

Operating Temp

0~ 50 °C

Storage Temp

-20~60°C

Operating Humidity

10~80%

Storage Humidity

10~90%

Application

Restaurants, Department Stores, Kitchen, Convenience Stores, Specialty Retail, Supermarket
