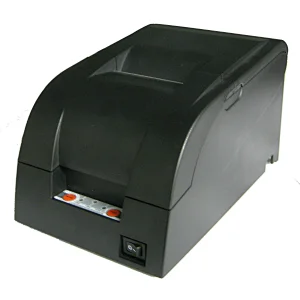

76mm Dot Matrix POS Printer

Print

Printing Method

Dot Matrix

Printing Speed

76mm paper: 4.4 lps/ 57mm paper: 5.6lps

Resolution

40cpl-200(whole dot)/400(half dot)

Effective Printing Width

66mm

Character

Character Set

ANK,GB2312-80(Chinese)

Print Font

Font A: 7x9 Font B:9x9  Chinese: 16 x 16

Character per Line

40cpl- 42/ 35

Paper Spec

Paper Type

Plain paper

Paper Width

76.0± 0.5mm /57.5± 0.5mm

Paper Roll Diameter

Max: 80.0mm

Roll Core Inner Diameter

13mm(min.)

Paper Thickness

0.05~0.08mm

Ribbon Cassette

ERC-39( Purple/Black) or double color NH37702

Paper Supply Method

Drop-in paper load

Reliability

MCBF

7.5 million lines

Auto Cutter

300,000 cuts

TPH

7.5 million lines

Emulation

ESC/POS

Driver

Windows98/2000/NT/XP/Vista/Win7

Sensor

Paper Near End Sensor/ Paper End Sensor

Drawer Port

1 Port

Interface

RS-232, Parallel, USB, Ethernet, Bluetooth

Power Supply (Adapter)

9V DC/2A

Auto cutter

Life

300,000 cuts

Cutting Method

Partial cut

Physical

Net Weight

With cutter:2.8kg, without cutter:2.4kg

Gross Weight

With cutter:4.2kg, without cutter:3.8kg

Printer Dimension (WxLxH)

160 x 259 x 150 mm

Color

Beige/Dark Gray

Environment

Operating Temp

0~ 40 °C

Storage Temp

-20~60°C

Operating Humidity

10~80%

Storage Humidity

10~90%

Application

Restaurants, Department Stores, Kitchen, Convenience Stores, Specialty Retail, Supermarket
