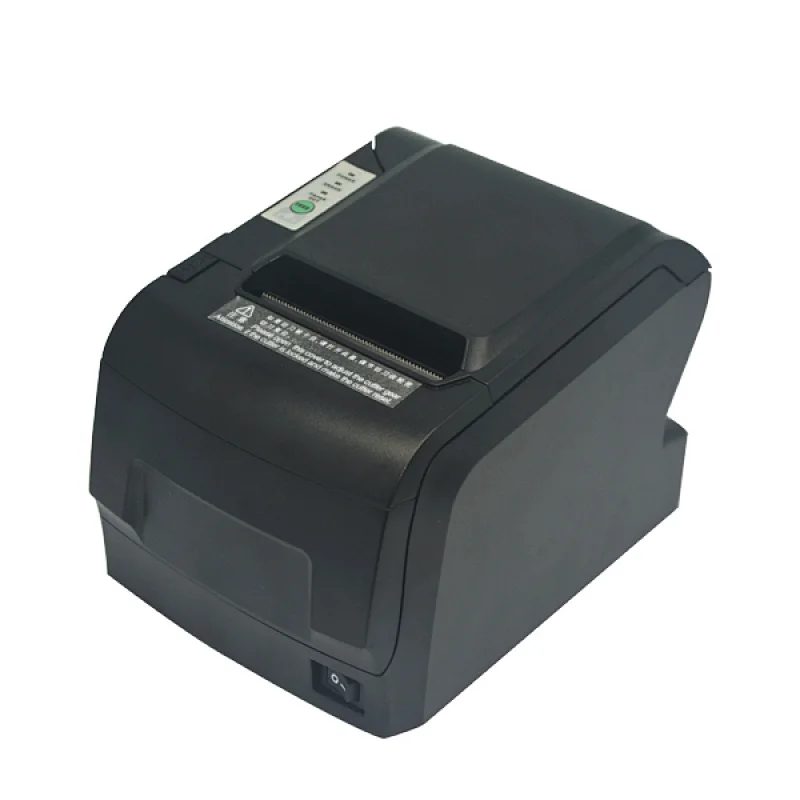

80mm Thermal POS Printer

Print

Printing Method

Thermal Line

Printing Speed

220mm/s

Resolution

8 dots/mm, 576 dots/line

Effective Printing Width

72mm

Character

Character Set

ASCII, GB18030(Chinese),BIG5

Print Font

Codepage, ANK: 12 x24; Chinese: 24 x 24

Character per Line

42/48

Paper Spec

Paper Type

Thermal paper

Paper Width

79.5± 0.5mm

Paper Roll Diameter

Max:  80.0mm

Roll Core Inner Diameter

13mm(min.)

Paper Thickness

0.06~0.08mm

Ribbon Cassette

N/A

Paper Supply Method

Drop-in easy paper loading

Printer Mechanism

Syncotek Brand

Reliability

MCBF(MCBF)
Mean Cycles Between Failure

60 million lines

TPH

100km

Barcode

1D:UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODEBAR,CODE93,CODE128    2D:PDF417,QR CODE, DATA matrix

Emulation

ESC/POS

Driver

Windows98/2000/NT/XP/VISTA/Win7/Win8/Linux/OPOS

Sensor

Paper End Sensor

Drawer Port

1 Port

Interface

RS-232/USB/Ethernet; USB+Bluetooth; USB+ Ethernet +WIFI

Power Supply (Adapter)

AC100 ~240V ± 10%(include) DC 24V, 2A

Auto cutter

Type

Guillotine

Life

1,000,000 cuts

Cutting Method

Partial cut

Physical

Net Weight

1.3kg

Gross Weight

2.6kg

Printer Dimension (WxLxH)

139 x 200x 150 mm

Color

Black/Beige

Environment

Operating Temp

5~ 50 °C

Storage Temp

-20~60°C

Operating Humidity

10~80%

Storage Humidity

10~90%
