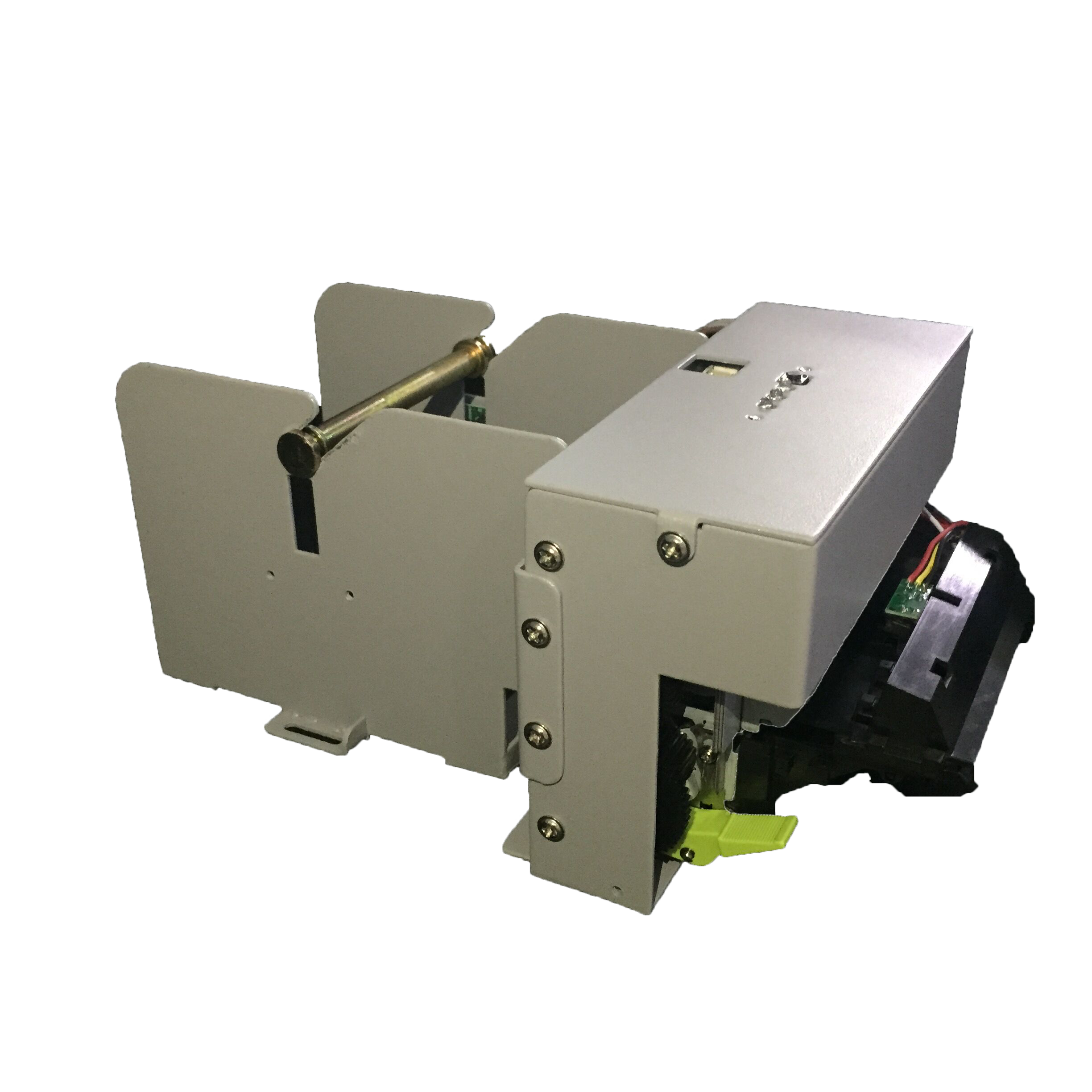

80mm Thermal Kiosk Printer

Model NO.: RG-K532-CH

Quantity:

Product Description

Features:

*Compatible with EPSON M-T532 mechanism and BA-T500 control board
*Auto cutter available
*High speed:150 mm/sec
*Various combination for option (mechanism+board/mechanism+board+holder)
*Paper near end, paper end etc. printer status monitoring
*Various interfaces with Parallel/USB/RS232 Serial/Bluetooth
*Windows driver for Windows XP/2000/VISTA/7/8/Linux
*Demo & SDK for Windows Mobile, WINCE, Symbian, Android and IOS
*Widely used in self-service equipment printing

Applications:

*Kiosk & vending machine

*queuing machine

*Promotion coupon printing machine

*Parking system

*Gas station filling machine

*Game machine & vote machine

Specifications：

Print Method	Thermal Line
Dot per Line	432 dots/line,448 dots/line, 576 dots/line, 640 dots/line
Resolution	8 dots/mm
Effective paper width	54 mm/56 mm/72 mm/74 mm
Paper Feed Pitch	0.125 mm
Print Speed	150 mm/sec
Paper Width	58 mm/60 mm/79.5 mm/82.5 mm
Paper Thickness	56 to 150μm
Paper Loading Method	Drop-in easy loading
Font	12× 24 dots, 9× 17 dots
Interface	RS232 serial, Parallel, USB, Bluetooth
Power	24V, 2.5A
Dimension	Printer mechanism	126.0 x 91.9 x 57.5 mm
	Control board	120.0 x 95 x28 mm
Weight	Approx.310g (excluding power adaptor)
Life Span	Print head	150 km or more
	Auto-cutter	1,000,000 cuts
	Rubber roller	5,000 times (turn on/off)
Operating	Operating Temperature	-15°C~ 70°C
	Operating Humidity	10 ~ 80% RH
Environment	Storage Temperature	-25° C~ 70° C
	Storage Humidity	10 ~ 90% RH
Detection	Head Temperature Detection	Via thermistor
	Paper out/Mark Detection	Via photo interrupter
	Platen release	Via sliding switch
	Movable blade	Via photo interrupter
