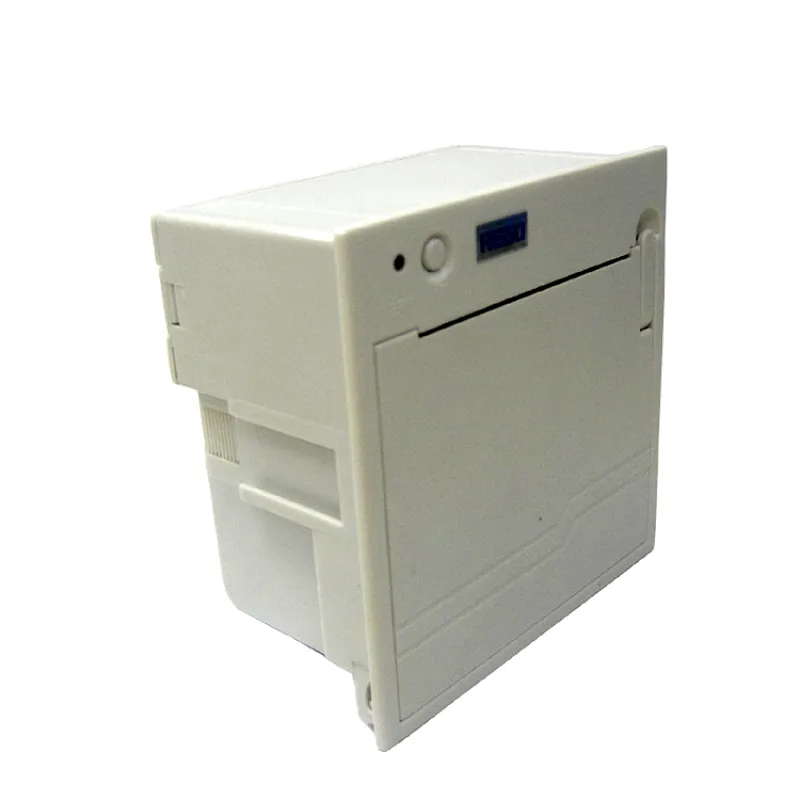

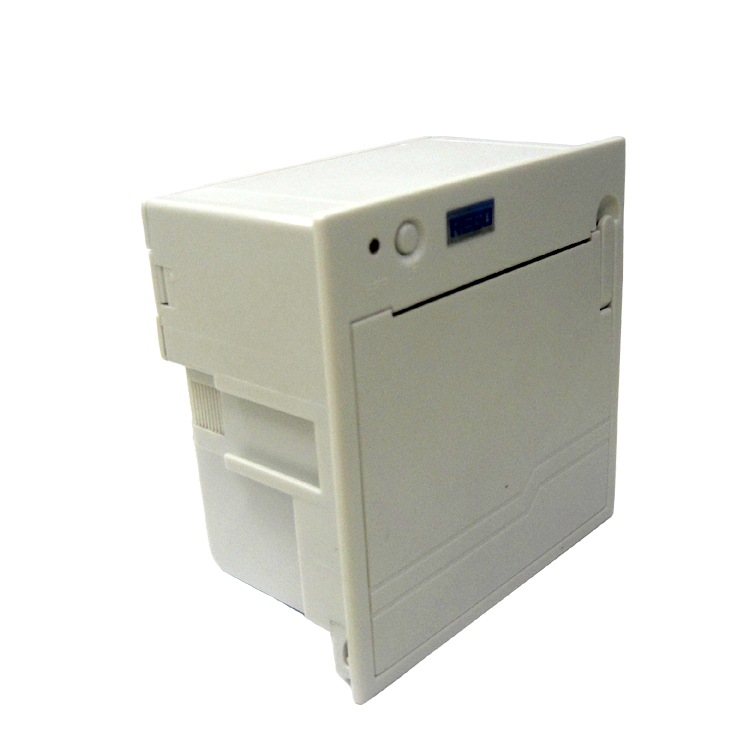

58mm Thermal Panel Printer

Quantity:

Features:

*Easy paper loading

*Low noise thermal printing

*RS232 or RS232+USB interface for option

*Front panel makes paper replacement easily

*Install Size 80 mm x 80 mm

*Different size for flexible embedding in a variety of instruments and meters

Applications:

*Electrical weighting equipment

*Fire-fighting control equipment

*Medical equipment

*Taximeters

*Access Control Equipment

*Industrial instruments & meters

*Coin counters & sorters

Specifications:

Print Method	Thermal line
Resolution	8 dots/mm, 384 dots/line
Effective Printing Width	48mm
Character Set	GB2312
Print Font	8×16,16×16,12×24, 9×24,16×24, 24×24
Print Speed	1-60mm/s
Self-defined Character	Yes
Barcode	UPC-A, UPC-E, EAN-13, EAN-8,CODE39,ITF25 ,CODABAR, CODE93, CODE128
Graphic	Support bitmap downloading
Paper End Sensor	Yes
Overheating Protection	Yes
Interface	RS-232/Parallel
Power Supply	3.5V~8.5V,3A
TPH	50km
Paper Type	Thermal paper
Paper Width	57.5± 0.5mm
Paper Thickness	0.06 to 0.08mm
Paper Roll Diameter	Max: 50.0mm
Paper Supply Method	Drop-in Easy Loading
Paper Cutting Method	Manual
Operating Temp/Humidity	0-50°C/10%-80%
Storage Temp/Humidity	-20-60°C / 10%-90%
Installation Port Size	80.0 x80.0mm
Outline Dimension (LxWxH)	84mm×84mm×55mm
