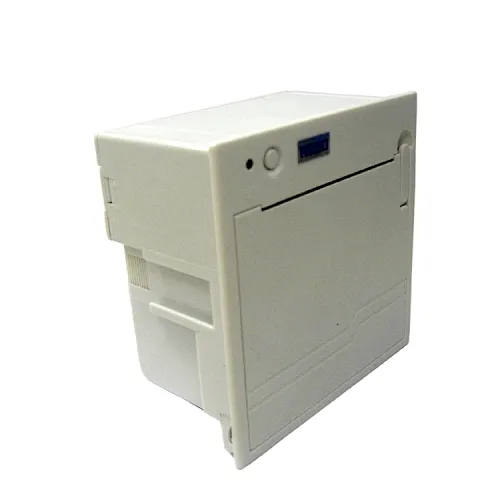

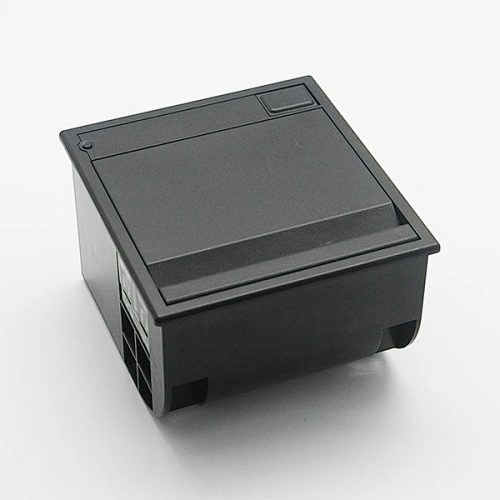

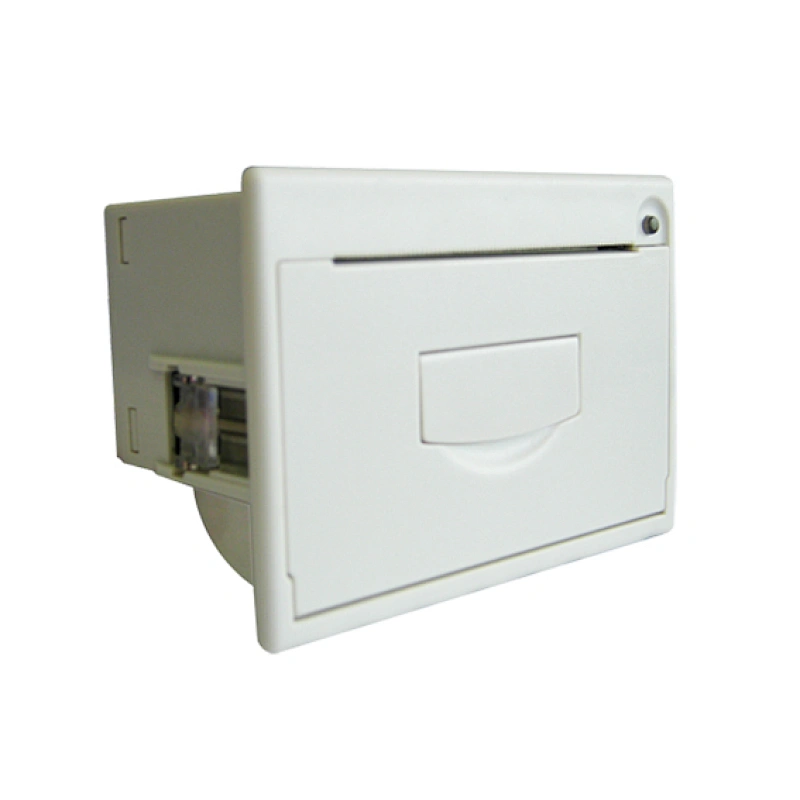

58mm Thermal Panel Printer

Model NO.: SP-D8

Quantity:

Product Description

Features:

*ARM platform
*Easy paper loading
*Low noise thermal printing
*Low power dissipation: 700 mA
*Support RS232 or parallel interface
*Front panel makes paper replacement easily
*Easily embedded to any kinds of instruments and meters

Application:

*Medical Equipment
*Measuring equipment
*Security Equipment
*Analyzing Instrument & Meter

Specifications:

Print	Printing Method	Thermal Line
	Printing Speed	1-50mm/s
	Resolution	8 dots/mm, 384 dots/line
	Effective Printing Width	48mm
Character	Character Set	ASCII, GB18030(Chinese), BIG5 (24*24)
	Print Font	Codepage, ASCII 9×17, 12×24, 16*16
	Character per Line	32
Paper Spec	Paper Type	Thermal paper
	Paper Width	57.5± 0.5mm
	Paper Thickness	0.06~0.08mm
	Paper Roll Diameter	Max: 50.0mm
	Roll Core Inner Diameter	13mm(min.)
Reliability	MCBF(MCBF) Mean Cycles Between Failure	5 million lines
Barcode	UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODEBAR, CODE93,CODE128	UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODEBAR, CODE93,CODE128
Emulation	ESC/POS
Driver	Windows98/2000/NT/XP/Vista/Win7/Linux
Interface	RS-232/Parallel
Paper Supply Method	Drop-in easy paper loading
Power Supply (Adapter)	DC5~8.5V±10%, 3A
Printer Mechanism	Chinese Brand
Auto cutter	N/A
Life	N/A
Cutting Method	N/A
Physical	Outline Dimension (WxDxH)	D8A:75*38mm
		D8B: 78*53.5mm
		D8C: 80*80mm
Installation Port Size	Installation Port Size	D8A:753842mm
		D8B: 7853.558.5mm
		D8C: 808084.8mm
Color	Beige/Black
Weight	185g
Environment	0~ 50 °C
Operating Humidity	10%~80%

Send Message

Related Products

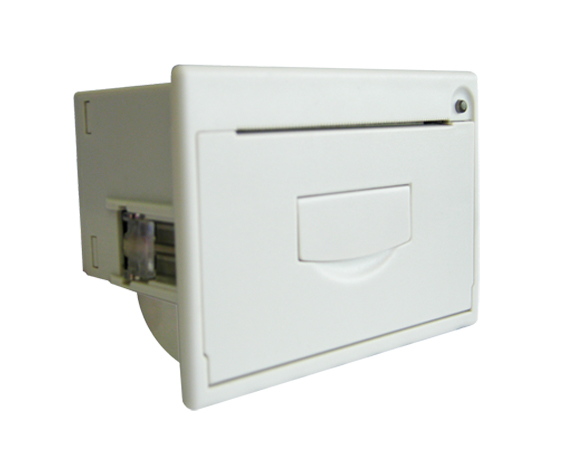

58mm Thermal Panel Printer

Model NO. RG-E487E

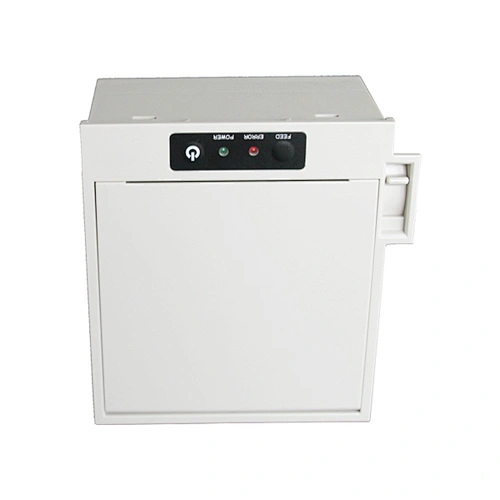

80mm Thermal Panel Printer
