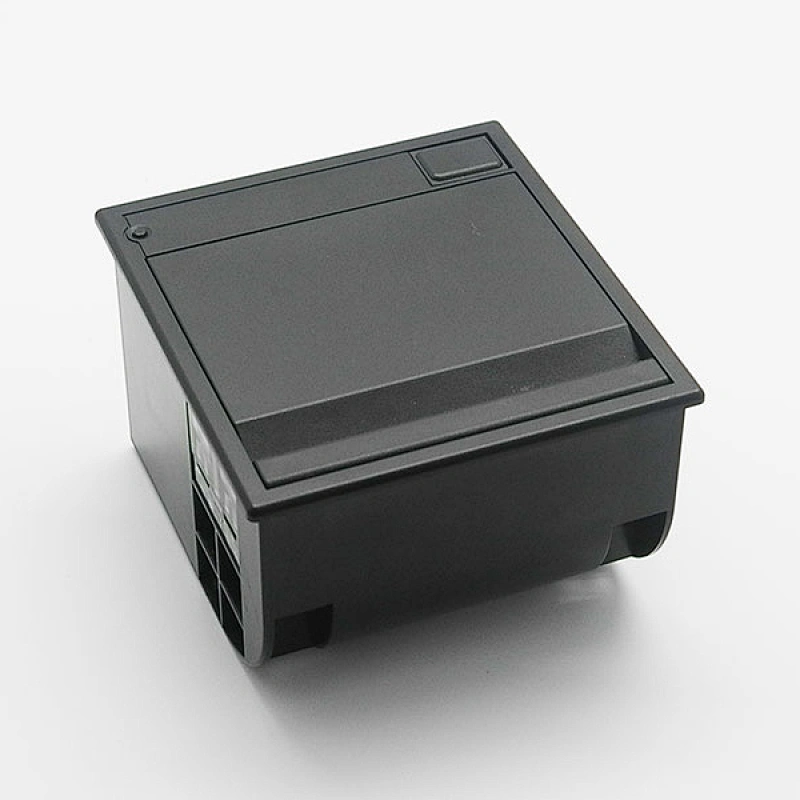

58mm Thermal Panel Printer

Quantity:

Features:

*Support RS232/Parallel/USB/RS485 interface
*Drop-in easy loading
*Windows98/2000/NT/XP/Vista/Win7 system
*48mm Thermal Line

Applications:

*Medical Equipment
*Measuring equipment
*Security Equipment
*Analyzing Instrument & Meter

Specifications:

Print Method	Thermal line
Effective Print Width	48mm
Resolution	8 dots/mm, 384 dots/line
Character Set	IBM Character set II,GB2312-80(Chinese),BIG5(24*24)
Print Font	Codepage, ASCII 924,1224
Character per Line	32
Paper Type	Thermal paper
Paper Width	57.5±0.5mm
Paper Thinkness	0.06~0.08mm
Paper Roll Diameter	Max:60.0mm
Roll Core Inner Diameter	13mm(min)
Print Speed	100mm/s
Reliability	MCBF(MCBF) Mean Cycles Between Failure:1 million lines
Barcode	UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODEBAR, CODE93,CODE128
Emulation	ESC/POS
Driver	Windows98/2000/NT/XP/Vista/Win7/Linux
Power supply (Adapter)	DC9~24V±10%,2A
Paper Supply Method	Drop-in easy loading
Interface	RS232/Parallel/USB/RS485
Printer Mechanism	SEIKO Brand
Auto Cutter Type	Guillotine
Auto Cutter Life	1,000,000 cut
Auto Cutter Cutting Method	Full/Partial cut
Outine Dimension(WDH)	10910168mm
Installation Port Size	1039565mm
Color	Black
Weight	185g
Environment Operating Temp/Operating Humidity	0~ 50 °C/10%~80%
Application	Medical Equipment, Measuring equipment, Security Equipment, Analyzing Instrument & Meter
