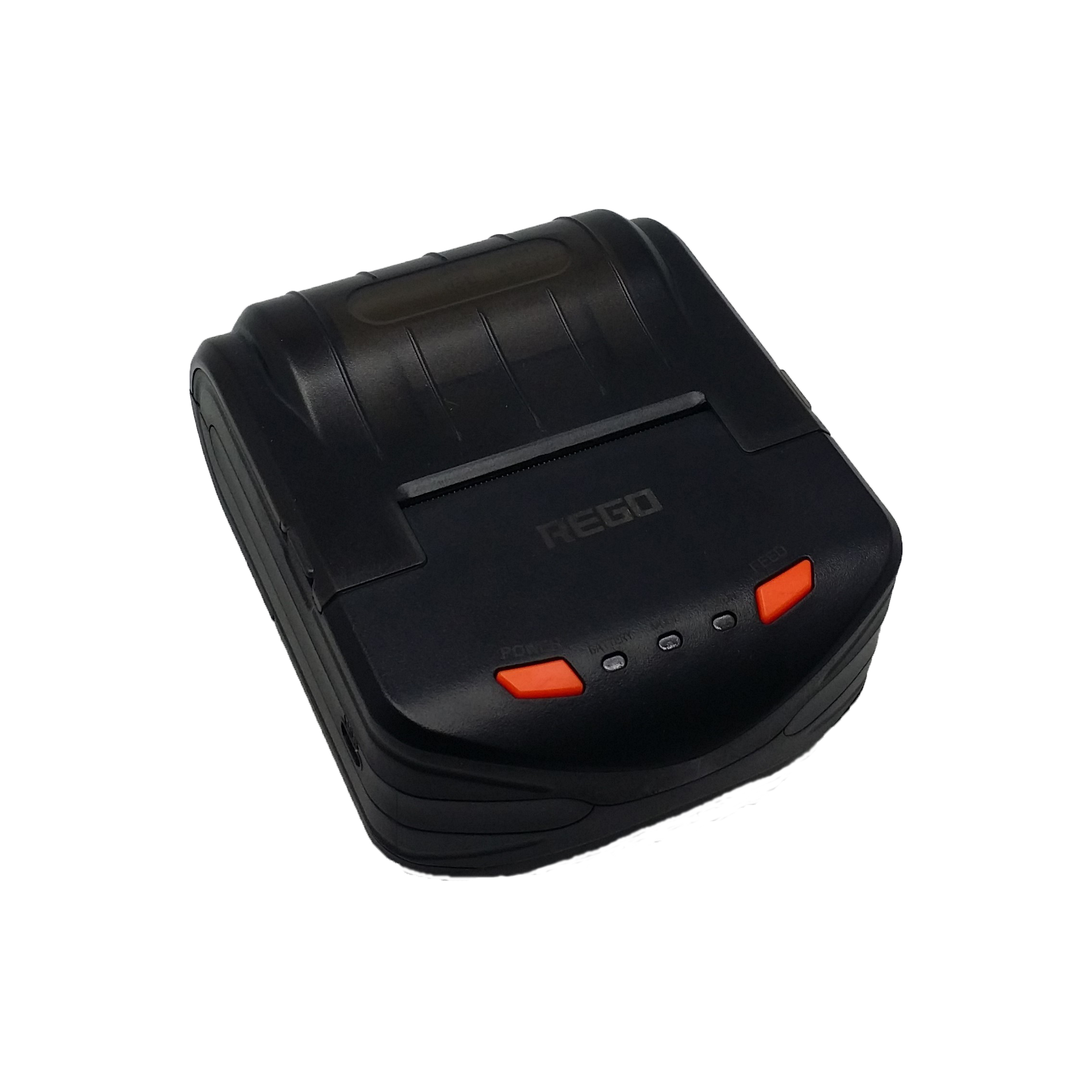

58mm mobile dot matrix printer

Model NO.: RG-MDP58B

Quantity:

Product Description

Features:

*Ultra light, compact and portable;

*Auto sleep and wake-up mode, lengthen the battery duration time

*Paper out auto alarming

*Black mark detection, automatically collate pages printing

*Serial, USB, Bluetooth and wifi communication interface guarantee the smooth communication

*Support user-side in field programming.

* Long lasting battery duration;

*Support Multiple copies printing and printout can be saved long time.

Applications:

*Lottery--- tickets

*Food-- Animal Tracing/Food Safety

*Meter reading-- Water/Electricity meter reading

*Insurance-- Vehicle insurance for onsite damage and loss assessment

*Warehousing-- Inventory Management/Goods Delivery & Receiving & Picking

*Parking-- Parking time and fee proof *Logistic-- Express invoice/delivery order

Specifications：

Printing	Printing method	Dot matrix
	Valid printing width	48mm
	Dots/line	Max.240dots
	Printing speed	5.5mm/s ,1.2lines/s(12 dot-width fonts)
	Paper width	57.5±0.5mm
	Paper thickness	0.06-0.085mm
	Paper Diameter	≤40mm
	Copy capability	One original and one copy
	Black mark detecting	Available
	Reliability	1,500,000lines
	Printable content	letters, numbers, symbols and Chinese characters, barcode,graphics, curve and pre-stored Icon
	Printing column	24columns;144dots/line 40 columns; 240 dots/line
Character	Built-in Character Set	ASCII, GB18030 (Chinese), BIG5
Character	Print font	Codepage: 79, Chinese: 16x16; 1212
Barcode	1D	UPC-A/ UPC-E/ EAN-13/ EAN-8/ CODE39/ ITF25 /CODABAR/ CODE93/ CODE128
Barcode	2D	PDF417、QR code、DATA Matrix
Paper Supply Method		Semi-auto paper loading
Interface	Wire	RS232 Serial+USB
Interface	Wireless	2.0Bluetooth/4.0 Bluetooth/wifi
Upgrade	Firmware upgrade	by USB
Power	Charger	12V/2A
	Battery	7.4V /2000mAh
	Charging time	Less than 3 hours
	Battery printing duration	90m
	Battery standby duration	100hours
	Power alarming	Support
Software	Command	ESC/POS
	Driver	32bit and 64bit Windows /LINUX
	SDK	WinCE,Windows Mobile, Andriod, IOS
	Setting tool	Yes(bmp download, baud rate, font, speed, density, password, blackmark, Bluetooth settings)
physical characteristics	Operating	0～50℃/10～80％
	Storage	-20～60℃/10～90％
	Dimension	120X97X43.3mm
	Weight	appr. 257g( Paper roll excluded)
	Color	Black
Reliability	MCBF(Mean Cycles Between Failure)	1 million lines
Reliability	TPH	1.5 million lines
Accessories	Standard	Paper, power adaptor, USB cable, battery, carrying case, ERC09 Ribbon Cassette
Accessories	Option	Vehicle charger, CD-ROM, serial cable
