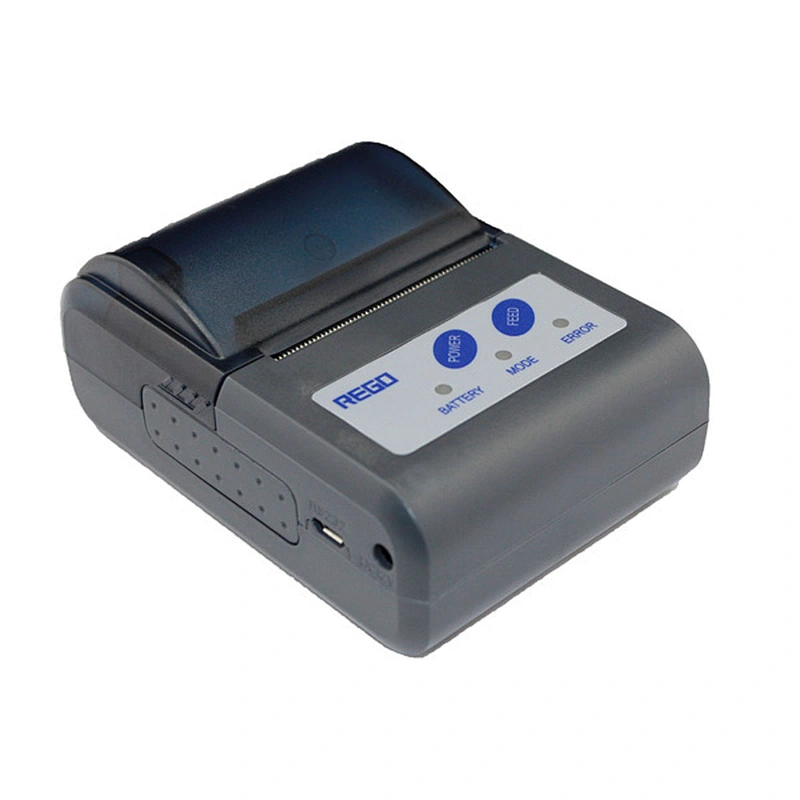

58mm thermal mobile printer

Model NO.: RG-MTP58B

Quantity:

Product Description

Features:
*Light weight, pocket-sized design
*Easy paper loading by CLAMSHELL design
*Long lasting battery duration (7.4V, 2000mAh Li-ion rechargeable battery)
*1.2 meter Free fall onto concrete
*Available to print without battery but with the power adapter
*In field programming – Update Firmware, Download Fonts and Logos just by a USB cable
*Windows driver for Windows XP/2000/VISTA/7/8/Linux
*Demo & SDK for Windows Mobile, WINCE, Symbian, Android and IOS

Applications：
*Lottery--- tickets
*Food-- Animal Tracing/Food Safety
*Meter reading-- Water/Electricity meter reading
*Insurance-- Vehicle insurance for onsite damage and loss assessment
*Warehousing-- Inventory Management/Goods Delivery & Receiving & Picking
*Parking-- Parking time and fee proof
*Logistic-- Express invoice/delivery order
*Mobile sales-- Invoice & Receipts infield service
*Law enforcement/Policing--Traffic/city inspectors/commerce/health supervision

Specifications:

Printing Method	Thermal line
Printing Speed	80mm/s
Effective Printing Width	48mm
Resolution	8dots/mm, 384 dots/line
RAM	32K
Flash	2M
Print Font	ANK: 8x16, 12 x24 GBK:16x16, 24 x24
Character per Line	32
Paper Type	Thermal paper
Paper Width	57.5±0.5mm
Paper Roll Diameter	Max: 40.0mm
Roll Core Inner Diameter	13mm(min.)
Paper Thickness	0.06 to 0.07mm
Paper Loading Method	Drop-in easy loading
TPH Reliability	50km
Barcode	1-D:UPC-A,UPC-E,EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128; 2- D: QR Code, PDF417, Data Matrix
Emulation	ESC/POS
Sensor	Paper end sensor, Cover open sensor
Interface	RS-232C, USB, Bluetooth, IOS Bluetooth, Wifi
Battery(rechargeable Li-ion battery)	DC7.4V/2000mAh
Battery Duration	180~240m continuous printing(12.5 ％density); 1200 receipts(150mm each receipt); 95~120m continuous printing(25％density)
Weight	215g(including paper and battery)
Dimension(WxLxH)	108 x 78 x 46mm
Color	Dark gray
Operating Temp	-10~50°C
Storage Temp	-20~70°C
Operating Humidity	20~85%
Storage Humidity	5~95%
