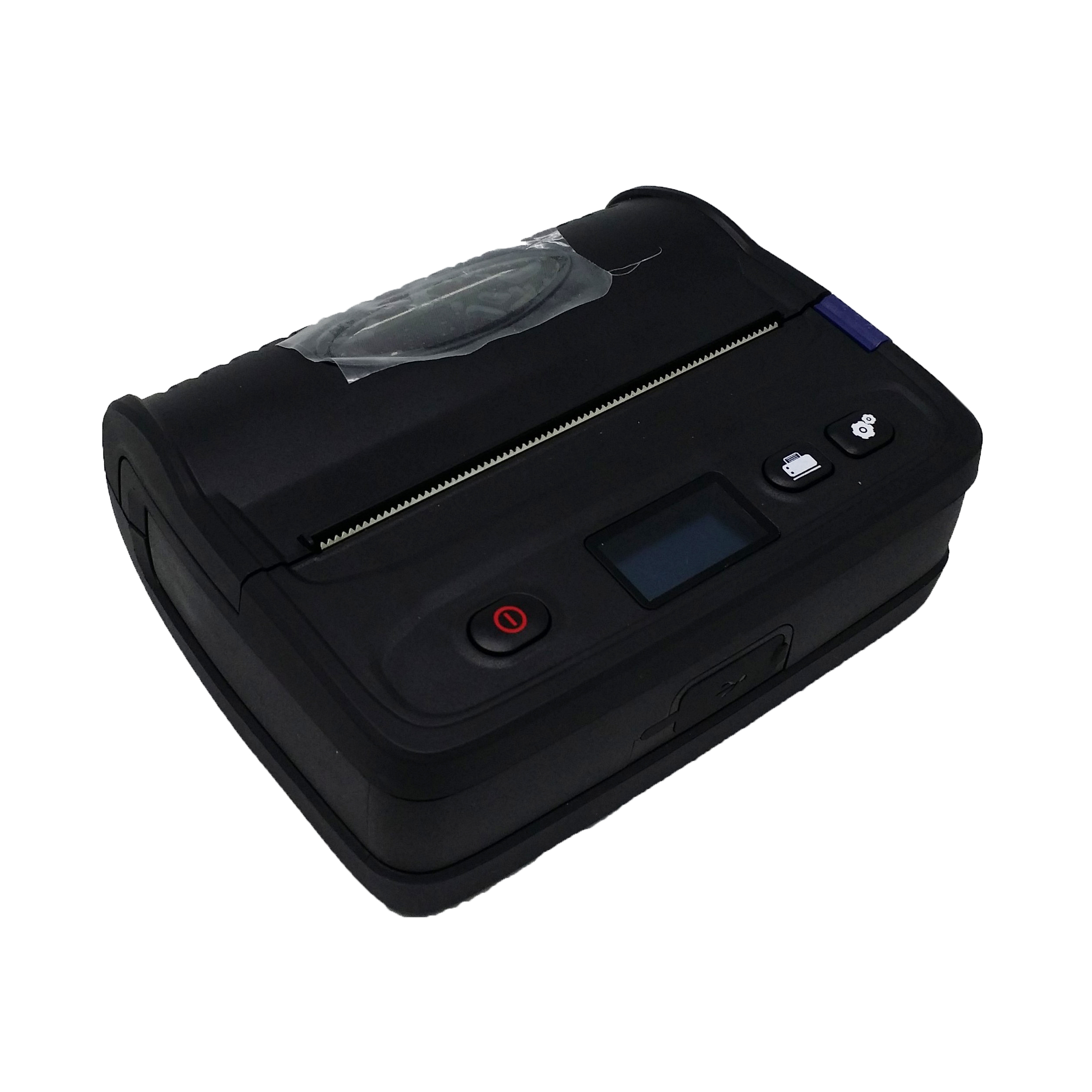

4 inch Thermal Mobile Printer

Model NO.: SP-L51

Quantity:

Product Description

Features：
*LCD display
*1”,2”,3”,4” Paper Size available
*Super battery capability
*Super diameter paper by outside bracket
*Compatible with CPCL, ESC/POS command set

Applications:
*Restaurants
*Department Stores
*Kitchen
*Convenience Stores
*Specialty Retail
*Supermarket

Specifiactions：

Print	Printing Method	Thermal mobile label printers
	Printing Speed	100mm/s ( Thermal Paper ) 50mm/s ( Label Paper )
	Resolution	8 dots/mm 576 dots/line
	Effective Printing Width	72mm
Character	Character Set	ASCII, GB18030 (Chinese), BIG5
	Print Font	Codepage, ANK: 9×17 / 12 x24, Chinese: 24x24
	Character per Line	48
Paper Spec	Paper Type	Thermal paper/Label Paper
	Paper Width	79.5± 0.5mm
	Paper Roll Diameter	40mm(max.)
	Roll Core Inner Diameter	13mm(min.)
	Paper Thickness	0.06~0.16mm
Paper Supply Method	Drop-in easy paper loading
Printer Mechanism	Fujitsu Brand
Reliability	MCBF(Mean Cycles Between Failure)	1.5 million lines
Reliability	TPH	50km
Barcode	1D: EAN-13, EAN-8, UPC-A, UPC-E, CODE39, CODE93, CODE128, CODABAR, INTERLEAVED 25 2D: PDF417,QRCODE,DATA Matrix
Emulation	CPCL/ESC-POS
Driver	Windows 98 / ME / 2000 / NT / XP / 2003 Server/Vista/Win7/Win 8
Sensor	Paper End Sensor
Interface	USB/Bluetooth
Others	Button	Power, Feed, Mode
	Indicator	Power, Feed, Mode
	Memory	Flash: 512kb; RAM: 128kb
	Receive Buffer Size	32K
	SDK	Windows CE; Windows Mobile 5.0/6.0; Symbian; Blackberry and Android
	Multi-languages	46 codepages
Power	Power Supply (Adapter)	DC9V/2A
	Battery Power	7.4V, 1.65A rechargeable Li-ion battery
	Battery Charge	100m continuous printing
	Charge Time	less than 3 hours
	Battery Duration	360 hours
Physical	Net Weight	196g
	Gross Weight	396g (Including battery & roll paper)
	Printer Dimension(WxLxH)	104mm x109mm x 48mm
	Color	Black
Environment	Operating Temp	-10-50°C
Environment	Operating Humidity	10%-80%
Application	Restaurants, Department Stores, Kitchen, Convenience Stores, Specialty Retail, Supermarket
Accessories	Battery, Charger USB Cable, CD Driver, Leather Case and Paper-roll Option: vehicle charger
Inner Package(WxLxH)	210mm x 155mm x 90mm(1.5kg)
