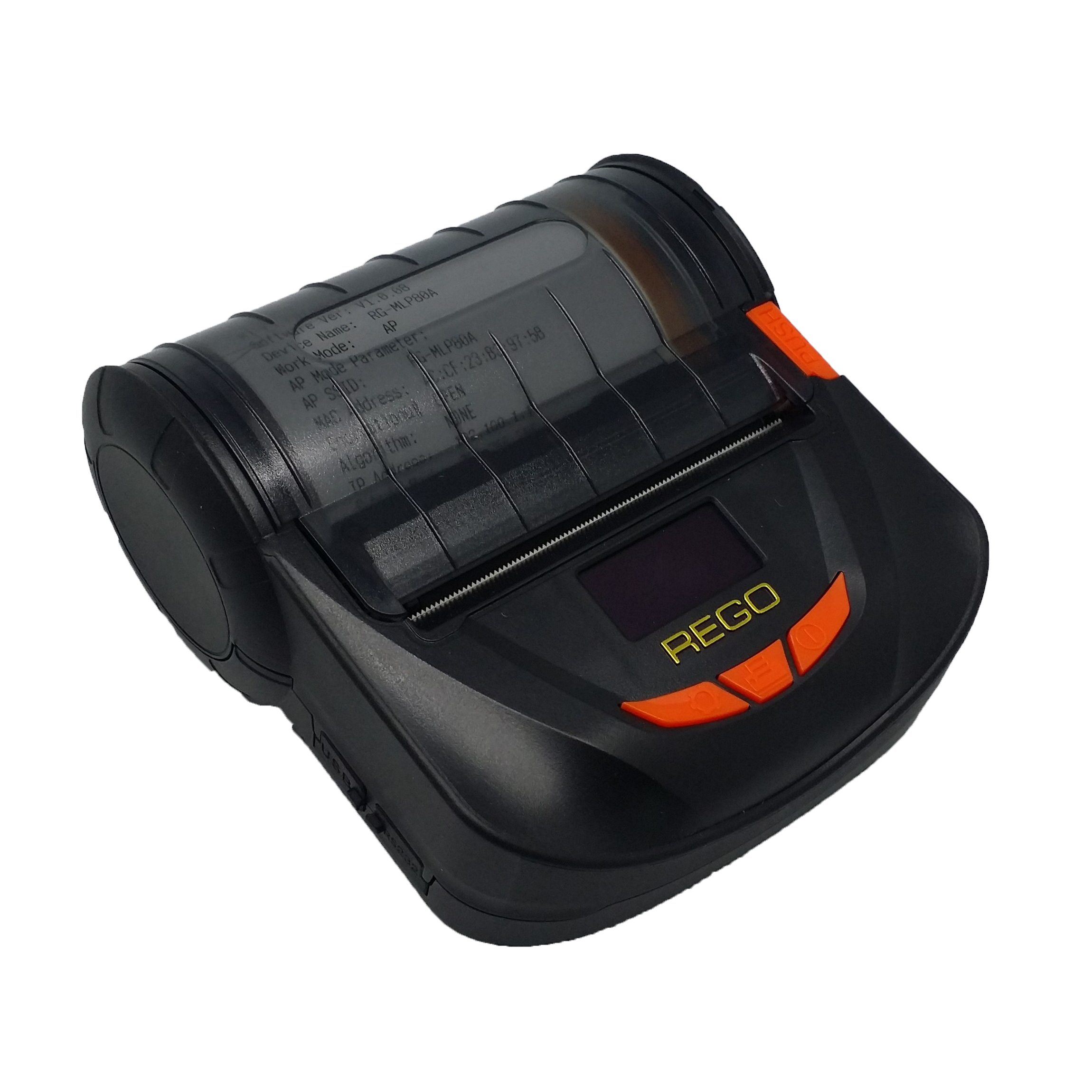

80mm Mobile Thermal Printer

Quantity:

Features:

*Adjustable print width from 44 to 83mm

*Larger paper housing with 50mm diameter

*7.4V/2000mhA rechargeable Lion battery to meet long lasting outdoor operation

*OLED display to show settings, printer status and power status

*Drop-in easy loading for easy maintenance

*5V USB cable for power charging

*Paper, power and overheat status alarming

*Auto standby, auto wake-up to lower power consumption

*Support black mark, gap two modes of localization

*Various interfaces with USB/RS232 Serial/ Bluetooth /wifi

*In field programming – Update Firmware, Download Fonts and Logos just by a USB cable

*Windows driver for Windows XP/2000/VISTA/7/8/Linux

*Demo & SDK for Windows Mobile, WINCE, Symbian, Android and IOS

Applications:

*Price tag printing

*Order label printing

*Various Infield printing

*Warehousing label printing

*Logistic-receipt/bill printing

*Retail label printing

*Workshop goods label printing

*Documents and records management

*Lab samples track

*Inventory management

*Medical record label printing

Specifications:

Printing method	thermal Line
Resolution	8dots/mm, 532 dots/line, 203dpi
Valid printing width	≤72mm
Printing Speed	100mm/s
Interface	Wire: RS232 Serial+USB Wireless: 4.0 Bluetooth / wifi
Paper type	Thermal roll paper, thermal normal label, thermal lineless label
Paper width	44~83mm
Paper thickness	60~140mm
Roll diameter	50mm(outer)/13mm(Inner)
Paper Loading Method	Drop-in easy loading
Paper cutting method	Paper manual tear off
Memory	FLASH : 4MB, RAM: 32MB Receiving buffer: 32MB
Charger	5V/1A or USB cable
Battery	7.4V /2000mAh
Command	ESC/POS+CPCL
Driver	32bit and 64bit Windows /LINUX
SDK	WinCE,Windows Mobile, Andriod, IOS
Barcode	1D: UPC-A/ UPC-E/ EAN-13/ EAN-8/ CODE39/ ITF25 /CODABAR/ CODE93/ CODE128 2D: PDF417,QR code,DATA Matrix
THP	100km
Standard	Paper, power adaptor, USB cable, battery, carrying case
Dimension	131x124x66mm
Option	Standby charger, CD-ROM, serial cable
Operating	0~50℃/10~80%
Storage	-20~60℃/10~90%
